Bluetti AC200MAX Expandable Power Station + 350W Solar Panel.

Bluetti AC200MAX Expandable Power Station + 350W Solar Panel

Meet the AC200MAX, BLUETTI’s first expandable power station. With 2048Wh LiFePO₄ cells and a built in 2,200W pure sine wave inverter, this is your very own mobile power center at home or on the road. Coupled with the PV350 Solar Panel, you'll never power down!

Key Features of the AC200MAX -

• 2,200W AC Pure Sine Wave Inverter (4,800W Surge).

• 2,048Wh Capacity.

• LiFePO₄ Battery with 3,500+ Life Cycles to 80%

• Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300

• 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)

• 900W Max. Solar Input

• 1400W Max. Fast Dual Charging (Solar + AC Adapter)

• Smart Control & Monitor in the BLUETTI App

Boost your power! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, enabling a potential total capacity of a staggering 8192Wh!

Harness the sun! Use in conjunction with the Bluetti PV350 Solar Panel and stay off-grid longer (purchase as a bundle and save $$)

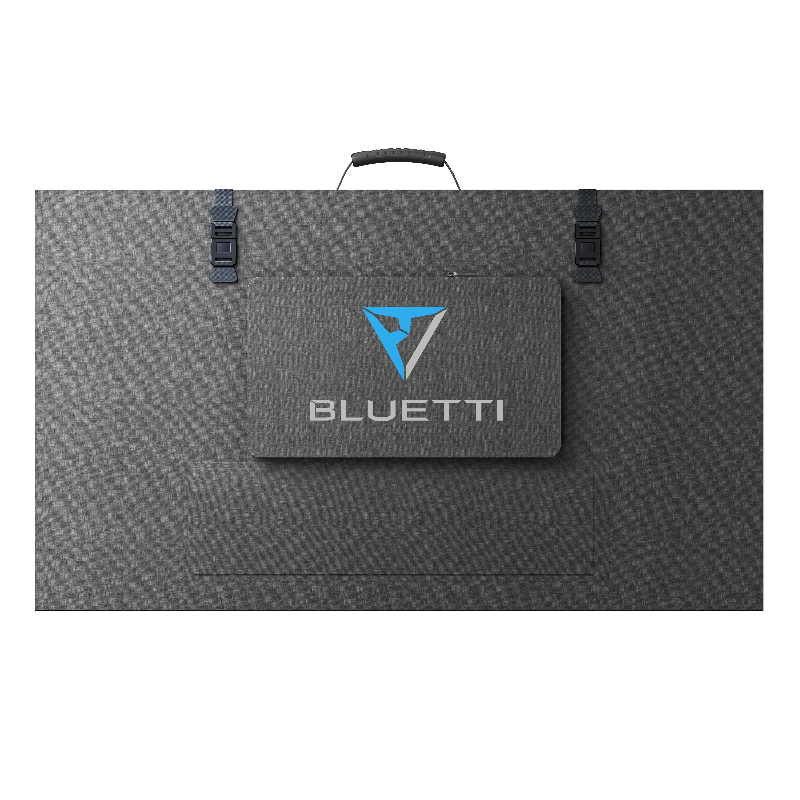

Key Features of the PV350 Solar Panel:

• Higher Conversion Rate
• Easy Setup & kickstand Included
• Durable & Splash-Proof
• Monocrystalline Silicon Cells
• Compatible With BLUETTI AC180/AC200P/AC200MAX/AC300/AC500/EB150/EP500Pro/EP500
• Foldable & Portable

AC200MAX TECH SPECS:

BATTERY INFO

Capacity:   2048Wh (51.2V,40Ah)

Cell Chemistry:   LiFePO4 (Lithium Iron Phosphate)

Lifecycle:   3,500+ Cycles to 80% Original Capacity

Shelf-life:   Recharge to 80% Every 3-6 Months

Management System:   MPPT Controller, BMS, etc

OUTPUT

AC Output:   4 x 220V-240V,2200W In Total

Inverter Type:   Pure Sine Wave

Surge Power:   4800W

USB-C Port:   1 x 100W Max.

USB-A Port:   (2 x 5V/3A USB-A) + (2 x 18W USB-A)

12V DC Outlets:   1 x 12V/30A (RV Outlet)  1 x 12V/10A (Car Outlet)   2 x 12V/10A DC 5521 (5.5mm Outlet)   *All Regulated.

Wireless Charging Pad:   2 x 15W Max. (For Each)

INPUT

AC Adapter Input:   500W.

Solar Input:  900W Max.OCV 10-145VDC, 15A

Car Input:   12/24V from Cigarette Lighter Port

Max Input:   1,400W, with AC+Solar Input

RECHARGE TIMES

AC Adapter (500W):   ≈5.5~6 Hours

Solar (900W):   ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W):   ≈10 or 20 Hours

AC Adapter + Solar (1400W):  ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)

Dual AC Adapters (1000W):   ≈3~3.5 Hours (Extra adapter is REQUIRED)

GENERAL

Scalability:   Expandable w/ Up to 2 x B230 or 2 x B300

Pass-through Charging:   Yes

Weight:   61.9lbs (28.1kg)

Dimensions (LxWxD): 16.5 x 11 x 15.2 in ( 42 x 28 x 38.65cm)

Operating Usage Temperature:   -4-104℉ (-20-40℃)

Storage Temperature:   14-113℉ (-10-45℃)

Certification: nUL2743, UKCA, TELEC, RCM, FCC ID, CE, PSE, NTC

Warranty:   48 Months
